Smart Living Journal

D-Link Connected Home Wi-Fi Sensors & Outlets Control4 Driver Package Released

Integrate Control4 with D-Link Wireless Devices
control4-dlink

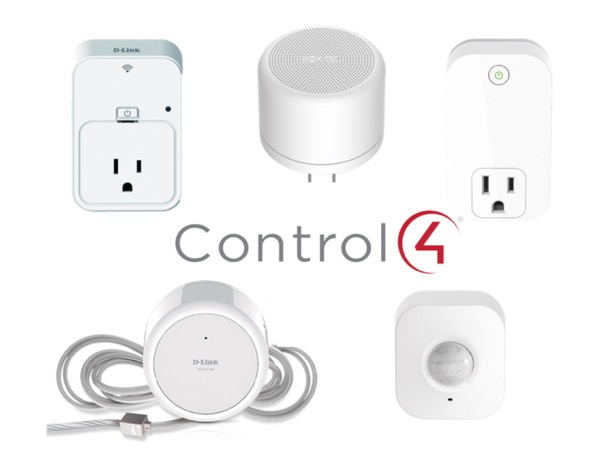

Now the popular and inexpensive Wi-Fi enabled D-Link smart home products can augment your Control4 system. The mydlink Control4 driver pack includes support for the following devices.

Water Sensor (DCH-S160)
Smart Plug (DSP-W110)
Smart Plug with Energy Monitoring (DSP-W215)
Siren (DCH-S220)
Motion Sensor (DCH-S150)
These devices do not require a bridge or other piece of hardware like many other products, but instead connect directly to your wireless network. Whether you're looking for an inexpensive way to reboot your router or modem remotely, keep an eye out for flooding using the wireless water sensor, or just get feedback on how much power a particular appliance is using, our Control4 drivers can help you achieve all this and more.

A few of the common features include:

  • Connection bindings for generic sensors such as a water sensor, relay or light for simple GUI display and status feedback
  • All data is output to string and number variables so you can use them for conditional programming or pop-ups and emails
  • Full light v2 support for inclusion in advanced lighting scenes
  • Programmatic control over settings such as changing the type of sound the siren will output on the fly


myDLINK-Control4
Now the popular and inexpensive Wi-Fi enabled D-Link smart home products can augment your Control4 system. Our mydlink Control4 driver pack includes support the following devices. Add as many of these to your project and use the same license code to integrate them all.

Wi-Fi Water Sensor
DCH-S160

  • Control4 event will fire upon water detection
  • Ability to bind a generic water sensor for on-screen UI display
  • Water Sensor Cable total cable length of 4.8 feet
  • Extension cable: 3.2 feet (RJ11 cable)
  • Water sensing cable: 1.6 feet
  • One alarm sound built-in to device
  • Alarm Volume - 70dB
  • Alarm will sound and LED will blink red when water is detected
  • 802.11n/g wireless Frequency Range
  • 2.4GHz to 2.4835GHz Maximum Operating Range
  • Two internal antennas
  • FCC and UL rated

Wi-Fi Smart Plug
DSP-W215

  • Full v2 Light proxy support
  • Relay binding support
  • Supports energy monitoring with use statistics
  • Temperature feedback
  • 802.11n
  • Power Input: 100 to 125 V AC
  • Power Capacity: Up to 1800W / 15Amps
  • FCC and UL rated


Wi-Fi Siren
DCH-S220

  • Trigger different sounds from Control4
  • 6 different built-in sounds:
  • Emergency
  • Fire
  • Ambulance
  • Police
  • Door Chime
  • Arm/Disarm
  • Selectable volume - 100 / 90 / 80 dB
  • Sound alarm based on trigger from Control4 events
  • 802.11n/g wireless Frequency Range
  • 2.4GHz to 2.4835GHz Maximum Operating Range
  • Two internal antennas
  • FCC and UL rated


Wi-Fi Smart Plug
DSP-W110

  • Full v2 Light proxy support
  • Relay binding support
  • 802.11n
  • Power Input: 100 to 125 V AC
  • Power Capacity: Up to 1800W / 15Amps
  • FCC and UL rated


Wi-Fi Motion Sensor
DCH-S150

  • Trigger events in Control4 based upon motion detection
  • Connection for generic motion sensor for UI display
  • NOTE: Only detects motion every 10 minutes; should not be used if you need instant motion detection
  • PIR Motion Sensor
  • Sensor Distance 26-feet
  • Wireless 802.11 b/g/n
  • Two internal antennas
  • FCC and UL rated
